2nd CG build - Neck & Headstock

Sawn from sapele blanks and glued to form the neck, headstock and heel basic shape.


Form and shape the heel.


Cutting the slots to hold the side plates.

Shape the heel.
L

Form the rabbet to hold the sound board.

Form the headstock veneer stepup to the nut.

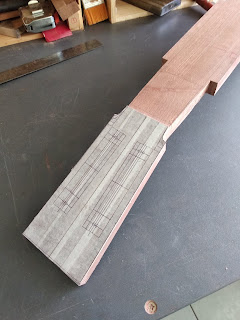

Form the headstock.



Near completed neck ready for assembly and final shaping.
