3/4 Classical Guitar #6


Size Body length 423mm, Upper bout width 230mm, Waist width 197 mm, Lower bout width 330mm, Side 80mm
580mm scale
Top Englemann spruce 141.3g
Back Khaya
Sides Khaya
Neck Sapele
Bridge Padauk 149g
Fingerboard Teak
Based on Torres FE19

Shaping the heel.
The headstock
The brace pattern
Cutting the soundhole
Gluing the braces

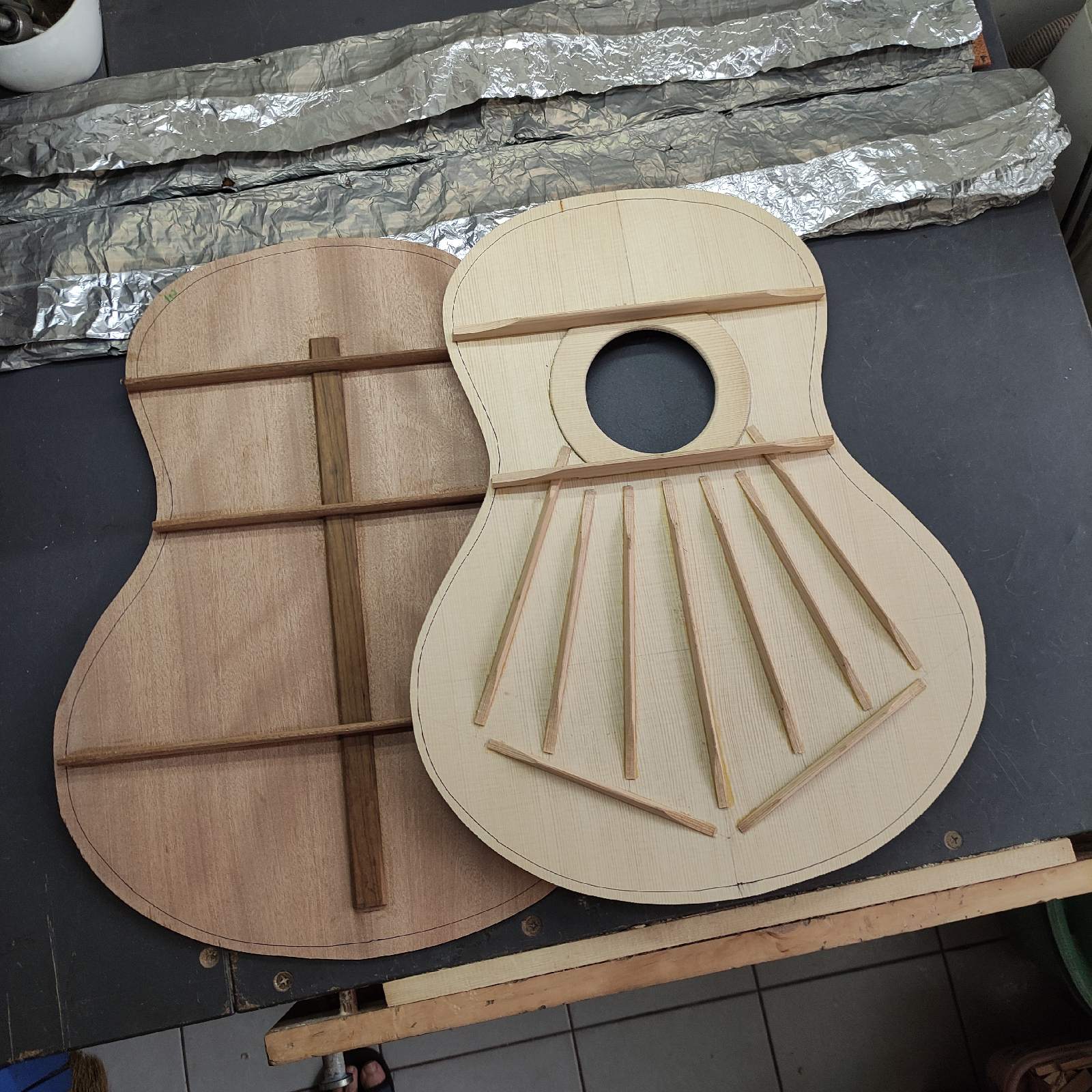

Top and back braces
Top frequency profile, 221 Hz
Back frequency profile 105 Hz
Bending sides with hot iron
Cased up
Paduak bridge

Marking off teak fingerboard, 580mm scale length

Ebony fret markers
Shaping the neck after mounting the fingerboard
Ready for French polish

Paduak bridge with bone saddle and 12 hole bone reinforced tie block

French polishing
Mounting the bridge
